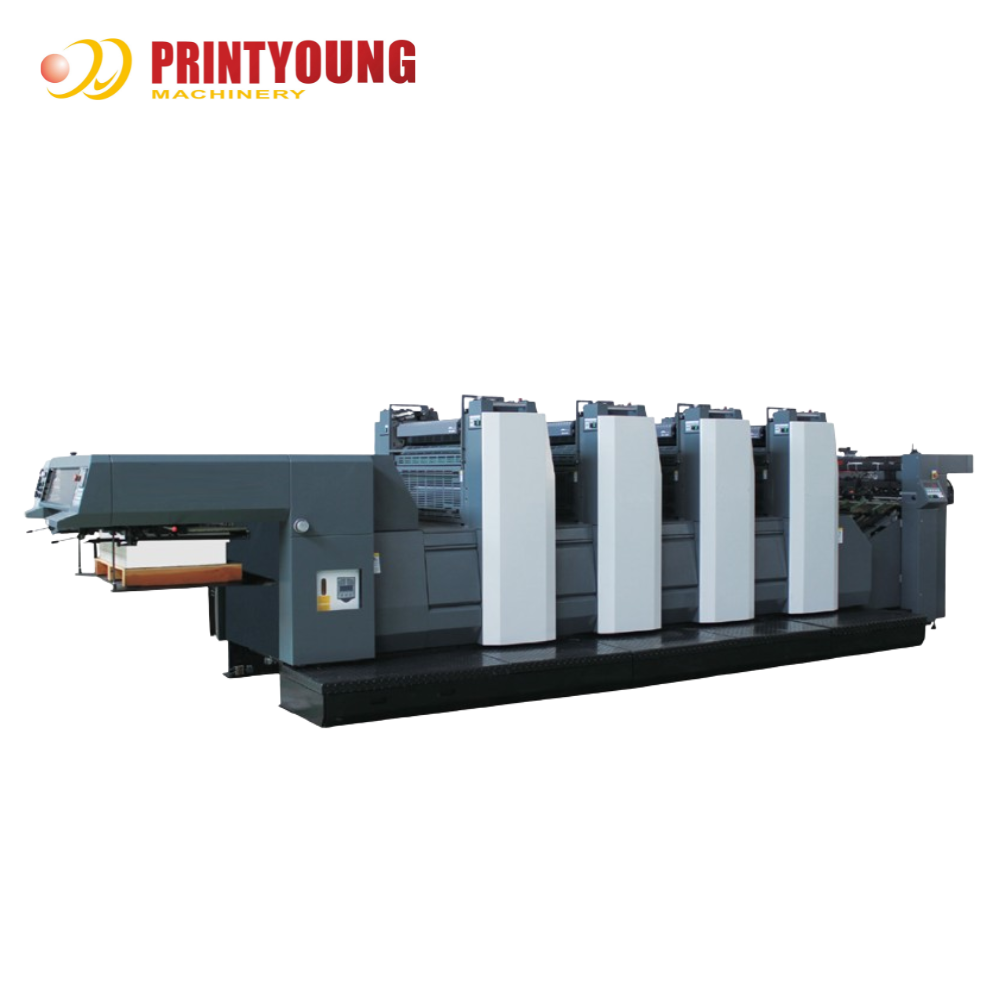

Name: PRY-924 Four Colors Automatic Offset Printing Machine-Screen & Card Printer with Ethernet
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: PRY-924
Price: 460000 USD
Availability: InStock

PRY-924 Four Colors Automatic Offset Printing Machine-Screen & Card Printer with Ethernet

বেসিক ইনফরমেশন

উৎপত্তি স্থল:	চীন
পরিচিতিমুলক নাম:	PRINTYOUNG
সাক্ষ্যদান:	CE
মডেল নম্বার:	PRY-924

ন্যূনতম চাহিদার পরিমাণ:	1 সেট
মূল্য:	USD 460000 Set
প্যাকেজিং বিবরণ:	আর্দ্রতা-প্রমাণ এবং শক-প্রুফ প্যাকেজিং গ্রহণ করে যা দীর্ঘ-দূরত্বের সড়ক পরিবহন এবং বিভিন্ন ধরণের আবহ
ডেলিভারি সময়:	60 দিন
পরিশোধের শর্ত:	এল/সি, টি/টি
যোগানের ক্ষমতা:	প্রতি মাসে 30 সেট

এখন যোগাযোগ

Max. সর্বোচ্চ Paper Size কাগজের আকার:

920 * 625 মিমি

মিন. কাগজের আকার:

540 * 360 মিমি

কাগজের পুরুত্ব:

0.04 ~ 0.6 মিমি

Max. সর্বোচ্চ printing area মুদ্রণ এলাকা:

900 * 615 মিমি

মুদ্রণের গতি:

3000 ~ 13000 শীট/ঘণ্টা

প্লেট আকার:

910 * 666 মিমি

প্লেটের বেধ:

0.44 মিমি

কম্বলের আকার:

941 * 681 * 1.95 মিমি

কম্বল আকার অধীনে:

905 * 630 * 0.5 মিমি

খাওয়ানো সিস্টেম:

রোটারি টাইপ স্ট্রিম ফিডার

PRY-924 Four Colors Offset Printing Machine

Features

* Heavy duty mechanism structure.Cast iron pedestal,frame,cylinders etc. have the good intension and tenacity,ensuring high stability and good printing impression.
* Under swing feeder,paper transferring structure is used high point gripper closed structure,insuring paper transferring system more stably.
* Double diameter impression cylinder and triple diameter transferring cylinder are available,reducing the times of paper connection,improving register precision.
* Plate cylinder and blanket cylinder go through with bearer,running stably,ensuring qualified printing image.
* Plate adjustment function in vertical,lateral and cocking position.The minimum adjustment is based on 0.01mm,saving auxiliary adjustment time.
* Special design in paper feed head,paper board front lay,gripper and other equipment. Insuring all kinds of thick and thin paper printing.
* Paper fed continuously and stably,more suitable for thick and thin paper printing.
* Pneumatic control system,ensuring the press more stably.
* High precision imported bearing,ensuring cylinder impression even in the high speed rotation.
* Chromed cylinder,prolongs the operation life.
* Automatic centralized oiling system,prolongs the working life.
* Operators are under protection because of the installation of safety guard,adjustment door and protecting shield.
* Vacuum sucker table,3 sucker type paper feed tape insures all kinds of paper conveying.
* Semi-automatic plate loader and tightening equipment,make the plate loading more easy and convenient,shorten plate changing time,improving working efficiency.
* Blower sucker and suction wheel are available in paper delivery section,insuring the paper delivery both in high and low rotation.
* Auto ink roller cleaning equipment,shortens cleaning time,increases the color changed speed,reduces the labor work of operator.(OPTIONAL)
* Alcohol dampening solution,continuous water feed,insuring water balance during printing.
* Automatic water volume tracking device,the water volume could be changed according to the running speed of the machine after the water volume fixed.
* PLC device and touch-screen operating.

* Suitable printing paper size.The max. paper size is 920mm×625mm,the max. printing size is 900mm×615mm,especially meet the needs of Chinese domestic printing shop,this machine is enough of most printing job requirement.
* High production efficiency.The max. printing speed is 13000sheet/hour,it is the most quickest speed comparing with the other same kind Chinese offset,suitable for both small and big quantity printing work.
* Greatly reduced the production cost.The material cost is determined by printing paper size and printing area, comparing with the other machines,a great expense will be saved yearly.

Technical Parameters

Max. Paper Size	920 * 625 mm
Min. Paper Size	540 * 360 mm
Paper Thickness	0.04 ~ 0.6 mm
Max. Printing Area	900 * 615 mm
Printing Speed	3000 ~ 13000 sheet/h
Plate Size	910 * 666 mm(positioning pin hole distance 780)
Plate Thickness(Total)	0.44 mm(PS plate 0.3,Plate packing 0.14mm)
Blanket Size	941 * 681 * 1.95 mm
Under Blanket Size	905 * 630 * 0.5 mm
Feeding System	rotary type stream feeder
Feeding Pile Capacity	height 800 mm
Feeder Table System	preset paper system
Delivery Pile Capacity	height 900 mm
Feeding System	Under swing gripper and paper feed drum
Number of Rollers	ink rollers:19 water rollers:4
Gripper Margin	10 ± 1 mm
Registration System	pull side guide, drop-away front lay
Vertical Image Adjustment Range	± 20 mm plate cylinder
Vertical Image Micro Adjustment Range	± 1 mm plate cylinder ± 1 mm front lay
Lateral Image Micro Adjustment Range	± 2 mm plate cylinder ± 2.5 mm pull side guide
Diagonal Micro-adjustment Range	± 0.2 mm (max. printing area)
Oiling System	centralized oiling system
Power	3phase 380V 50Hz
Wattage	45 kw
Motor Wattage	22 kw
Dimensions	7800 * 3010 * 1870 mm
Net Weight	26 t

Configuration

* Vacuum sucker table.Saving the Pager changing time by only easily adjusting the brush and rotation wheel,the paper feeding tape insures paper conveying safely and stably.

* Water and ink fountain roller is controlled by program and drived by motor,keeping the same timing with printing speed,and providing the stable ink volume and dampening solution.
* Cylinder ON/OFF controlled pneumatically, take good use of machine space,improved the stability, and reduced the vibration and noise.
* Semi-automatic plate loader,make the plate loading more quicker and exactly, reduce the plate loading time.

* Plate register remote control device. Automatic plate micro adjustment in vertical, lateral and diagonal,quick and convenient for image setting.
* Micro-computer control,touch screen to fully control and monitor all functions during printing.
* Alcohol dampening system,improve color transfer,insure the printing quality.
* Unit type separated frame & basement, convenient for unit matching,exchangeable and cost reduced.
* Remote ink console,insures the quick response when color is going to be changed.
* Auto blanket washing and auto ink roller cleaning device,shorten the washing and color changing time,improve the working efficiency and reduce the labor work.

* Heavy duty mechanism structure.Cast iron pedestal,frame,cylinder etc. have the good intension and tenacity,ensuring high stability and good printing impression.
* High precision import bearing,ensuring printing quality even in high speed rotation.
* Advanced structure and functions,SEVEN o'clock cylinder arrangement,double diameter impression and transferring cylinder design,more suitable for thicker paper printing.
