Name: PRINTYOUNG SZJ-DL Eco-Friendly Thick Paper Counting Machine 220V 300mm/once Capacity 1100mm Max Width
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: SZJ-DL
Price: 13800 USD
Availability: InStock

PRINTYOUNG SZJ-DL Eco-Friendly Thick Paper Counting Machine 220V 300mm/once Capacity 1100mm Max Width

বেসিক ইনফরমেশন

উৎপত্তি স্থল:	চীন
পরিচিতিমুলক নাম:	PRINTYOUNG
সাক্ষ্যদান:	CE
মডেল নম্বার:	SZJ-DL

ন্যূনতম চাহিদার পরিমাণ:	1 সেট
মূল্য:	USD 13800 Set
ডেলিভারি সময়:	30 কর্মদিবস
পরিশোধের শর্ত:	এল/সি, টি/টি
যোগানের ক্ষমতা:	প্রতি মাসে 30 সেট

এখন যোগাযোগ

কাগজ বেধ পরিসীমা:	22 ~ 230 গ্রাম/মি²	<i>Max.</i> <b>সর্বোচ্চ</b> <i>Paper Size</i> <b>কাগজের আকার</b>:	700 * 1100 মিমি
মিন. কাগজের আকার:	100 * 150 মিমি	সর্বোচ্চ কাগজ স্ট্যাকিং উচ্চতা:	300 মিমি
টেবিলের আকার সংগ্রহ করা হচ্ছে:	1200 * 1300 মিমি	টেবিল উচ্চতা সংগ্রহ:	760 মিমি
মেশিনের ওজন:	260 কেজি	শক্তি গ্রহণ:	900 W

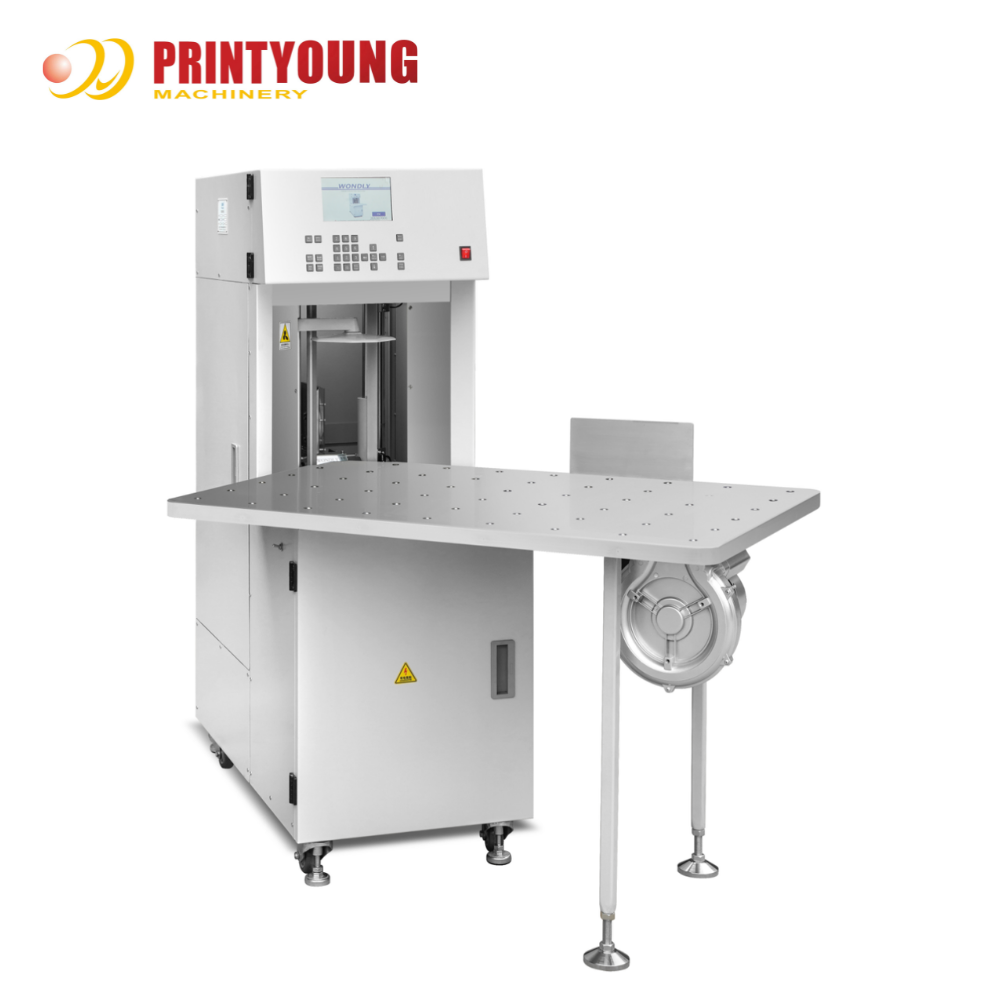

SZJ-DL Thick Paper Counting Machine

Features

1.Adopt the international most advanced module sports computer system technology 7 inch touch screen + button dual function.

2.ARM architecture processor:The Advanced RISC Machine, formerly known as the Acorn RISC Machine,is a 32-bit RISC processor architecture.
(1)Compared with the traditional single-chip 40MHz,the processor of the paper machine uses ARM 9 processor faster,with a frequency of 400MHz and a 5-stage pipeline,the comprehensive speed is about 6 to 10 times that of the single-chip.
(2)Compared to Intel CPUs,ARM architecture processors use RISC simplified instruction sets,with low chip power consumption and no need for fan cooling.

3.Any kind and any thickness of paper within the parameter range can be precise and high-speed counting.Special paper depending on the actual situation.
4.The paper counting machine is rich in features to meet the needs of different users,in addition to the standard paper counting mode,there is the random paper label insert function,which can nark for different quantity of paper.It can edit and save 99 program groups,each program group can edit a different number of papers;
The paper quantity detection function is for the check whether the predetermined number and actual number matches or not;
The specified number counting function is for sorting out the required number of paper from the paper-pile.
5.Auto-diagnostic function.The operator can know from a clear error message displays on the platform which shows whether the machine fault is caused by their own operating mistakes,or the machine itself abnormal operating conditions.
6.It has a paper label fast changing structure.
7.Stainless steel table with large number of air cushion structure paper easy and convenient.

Technical Parameters

Paper Thickness Range	22 ~ 230 g/m² (carbon paper,offset printing paper,coated paper,etc.)
Max. Paper Size	700 * 1100 mm
Min. Paper Size	100 * 150 mm
Max. Paper Stacking Height	300 mm
Power Supply/Voltage	AC 220 ± 10V , 50Hz
Motor	0.4 kw
Collecting Table Size	1200 * 1300 mm
Collecting Table Height	760 mm
Machine Size	1700 * 1300 * 1500 mm
Machine Weight	260 kg
Label Size for Paper in Pile	100 * 6 mm
Consumed Power	900 W

Configuration

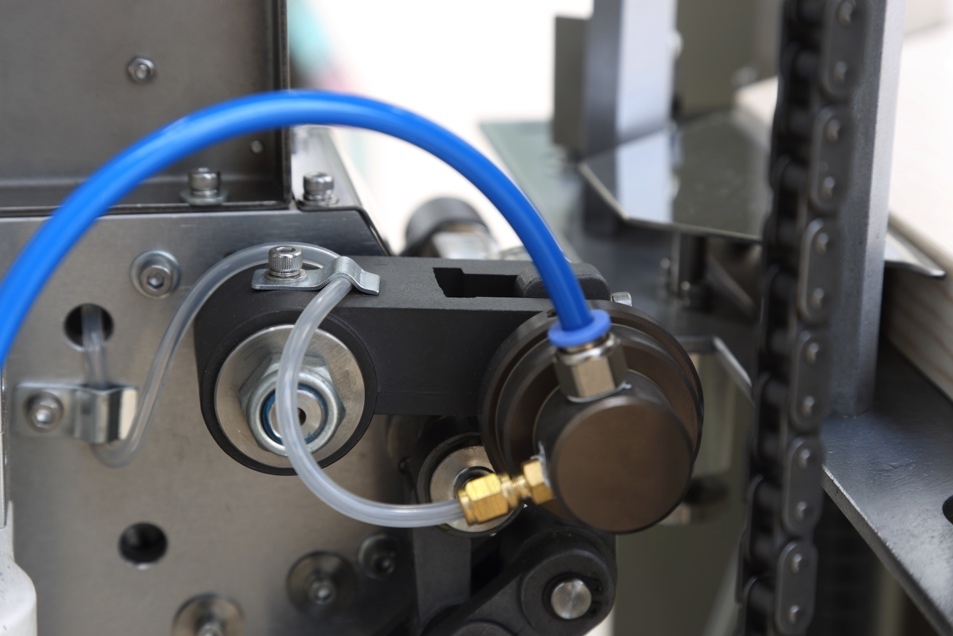

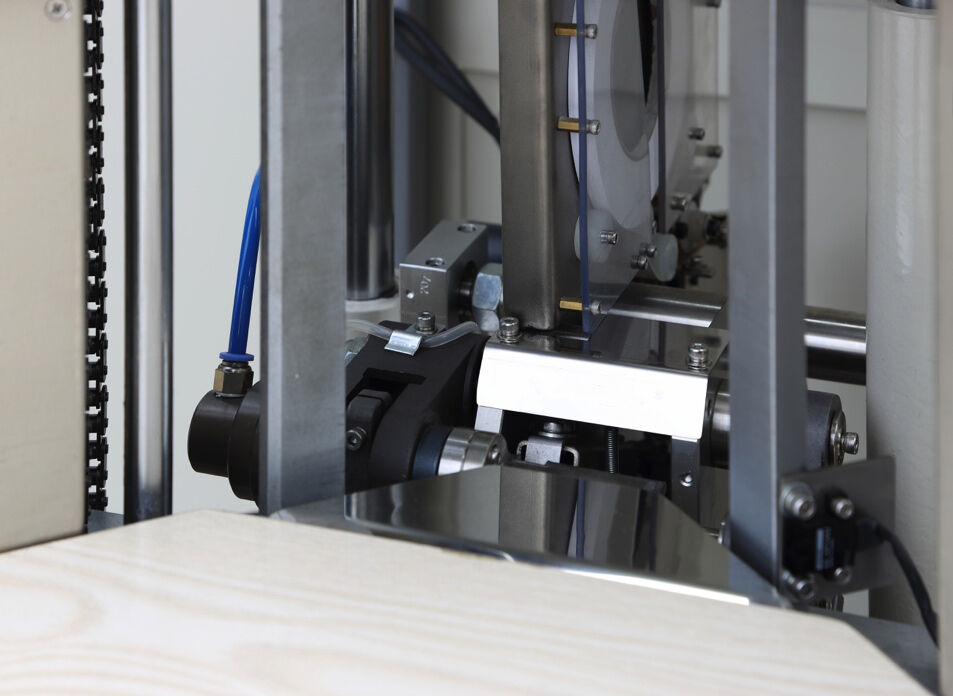

Front structure of the label cutting unit Side structure of the paper sucking unit

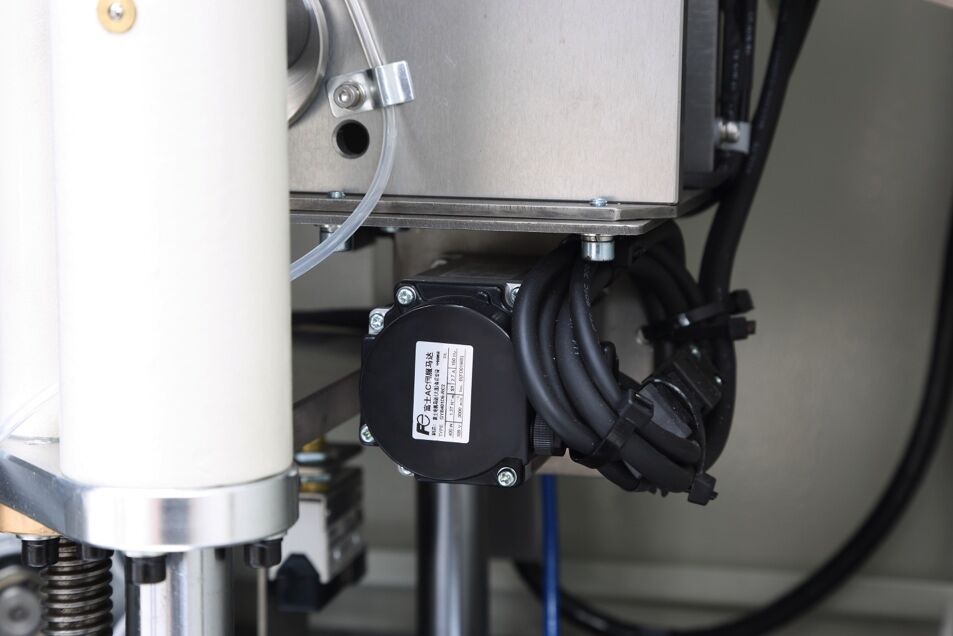

Side view of the Japan Fuji motor unit Using Omron limit sensor

Using Japanese original NSK bearing Japan Orion vacuum pump (optional)
