| <i>Max.</i> <b>সর্বোচ্চ</b> <i>Laminating Width</i> <b>লেমিনেটিং প্রস্থ</b>: | 370 মিমি 500 মিমি 650 মিমি | অপারেটিং গতি: | 13 মিটার/মিনিট |
|---|---|---|---|
| কাগজের বেধ: | 125 ~ 350 জিএসএম | স্তরিত তাপমাত্রা: | 90 ~ 110 ডিগ্রী (স্বাভাবিক) |
| মোট শক্তি: | 2000 W | উপরের হিটিং রোল: | ইস্পাত রোল (মান) |
| নিম্ন হিটিং রোল: | রাবার রোল | নিয়ন্ত্রণ প্যানেল: | ডিজিটাল এলইডি সিস্টেম |

|

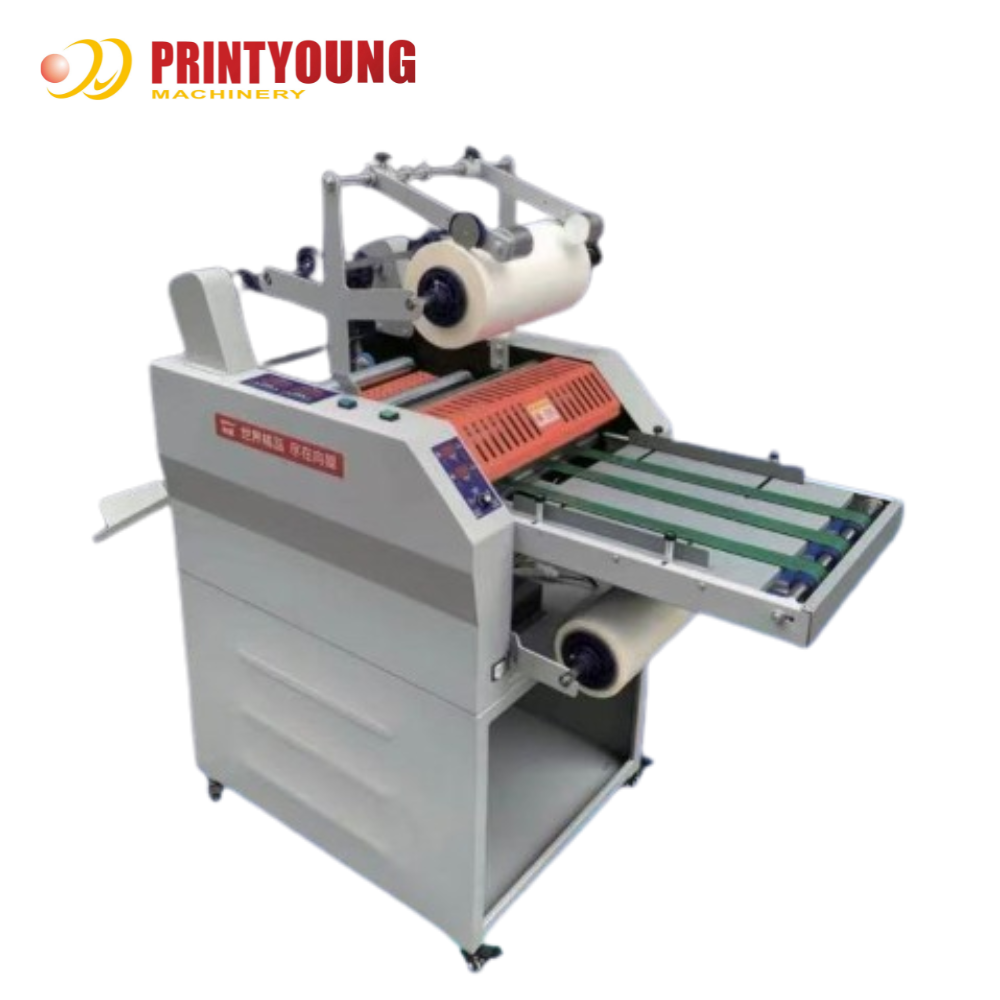

PRY-390D Film Laminator
|
|||
|
Max. Laminating Width
|
370 mm
|
500 mm | 650 mm |
|
Operating Speed
|
13 meters/minute
|
||
|
Paper Thickness
|
125 ~ 350 gsm
|
||
|
Laminating Temperature
|
90 ~ 110 degree (normal)
|
||
|
Total Power
|
2000 W
|
||
|
Temperature Control
|
upper / lower temperature are controlled separately
|
||
|
Upper Heating Roll
|
steel roll (standard)
|
||
|
Lower Heating Roll
|
rubber roll
|
||
|
Control Panel
|
digital LED system
|
||
|
Feeding Mode
|
manual
|
||
|
Overlap
|
yes
|
||
|
Auto Bursting
|
yes
|
||
|
Optional
|
two sides lamination with auto cut function (can be option in future)
|
||
|
Slitting Function
|
yes
|
||
|
Anti-curling Function
|
yes
|
||
|
Conveyor Belt Number
|
3
|
4 | 5 |
|
Optional
|
lower / upper rewinder (must appoint when order)
|
||
|
Machine Size
|
150 * 60 * 126 cm
|
150 * 73 * 126 cm | 150 * 88 * 126 cm |
|
Option
|
compressor
|
||
