Paper Sheet Cutting Machine , a4 Paper Cutting Machine Automatic

চীন Paper Sheet Cutting Machine , a4 Paper Cutting Machine Automatic  সরবরাহকারী

বড় ইমেজ :  Paper Sheet Cutting Machine , a4 Paper Cutting Machine Automatic

পণ্যের বিবরণ:

Place of Origin: China
পরিচিতিমুলক নাম: Printyoung
সাক্ষ্যদান: CE
Model Number: QZYW-ET Series

প্রদান:

Minimum Order Quantity: 1 set
মূল্য: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 30 sets per month
Contact Now
বিস্তারিত পণ্যের বর্ণনা
Cutting Width: 78cm Cutting speed: 45 r/min

Paper Sheet Cutting Machine , a4 Paper Cutting Machine Automatic

Specifications :



Parameter Unit 78 92 115 130
Cutting width CM 78 92 115 130
Max.cutting height without assistance pressing plate CM 13 13 16.5 13
Max.cutting depth CM 78 93 115 130
Min cutting depth without assistance pressing plate CM 2.5 2.5 3 3
Extended length of working table CM 64 65 73 73
Height of working table CM 86 86 89 86
Machine width including side working table CM 215 233 266 266
Total length of working table CM 178 198 226 241
Cutting speed R/MIN 45 45 45 45
Manx. Paper pressure N 30000 35000 40000 40000
Power of main motor KW 3 3 4 4
Motor for paper feeding KW 0.75 0.75 0.75 0.75
Air pump KW 0.55 0.55 0.75 0.75
Machine weight KG 2500 2700 4000 3900
Overall dimension CM 210*140*195 225*140*195 255*160*215 260*153*195





Parameter Unit 137 155 166 186
Cutting width CM 137 155 166 186
Max.cutting height without assistance pressing plate CM 16.5 16.5 16.5 16.5
Max.cutting depth CM 145 155 166 195
Min cutting depth without assistance pressing plate CM 3 3 3 3
Extended length of working table CM 74 75 75 75
Height of working table CM 91 90 90 90
Machine width including side working table CM 287 314 322 375
Total length of working table CM 259 280 283 355
Cutting speed R/MIN 45 42 42 40
Manx. Paper pressure N 45000 55000 60000 65000
Power of main motor KW 4 5.5 5.5 7.5
Motor for paper feeding KW 1 1 1 1
Air pump KW 0.75*2 0.75*2 0.75*2 0.75*2
Machine weight KG 4500 5200 550 6800
Overall dimension CM 280*160*215 296*165*215 315*160*215 340*182*230


Introduction:
 Paul new high-speed cutter, the wait is expected figures in Japan to exchange control system, 10.4-inch color LCD display. Data resolution of 0.01mm, and fault diagnosis capabilities of self-functioning model shows that 100 program group, more than 10,000 cut at different positions, dynamic display of cutting and running, dynamic tracking, the maximum speed of pushing paper 5-18 m / min, a more powerful computer operating system may be memory, storage, memory storage time of up to 300,000 hours above, and self-maintenance of the operating system. Italy selected hydraulic components, Germany, Japan, Korea Electric components, Taiwan ball screw, linear rail, and fitted with safety overload cut switch, safety lock pressure paper container, electrical configuration for the programmable logic controller PLC to all electrical, mechanical implementation of monitoring, the use of imported low-maintenance bearings.

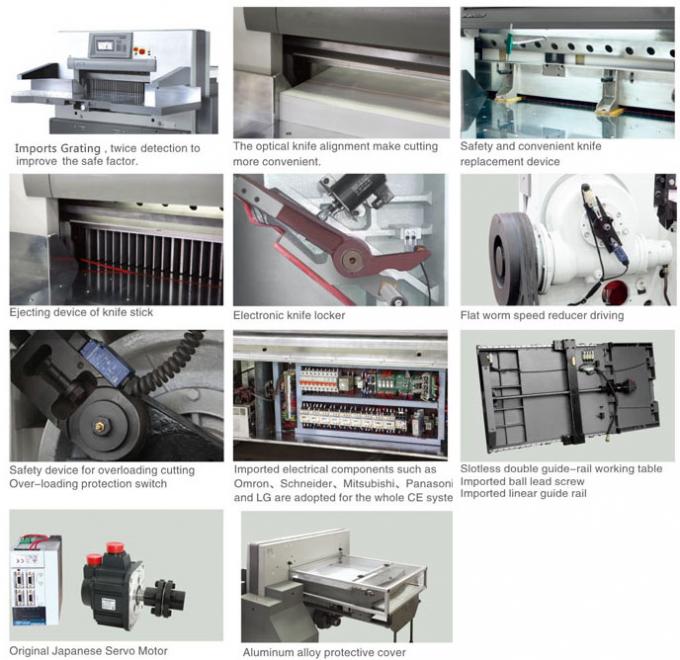

Main features:
A. Ball lead screw and linear guide-rail makes paper impeller run smooth,low noise,accurate positioning,enhance the cutting precision and speed greatly,prolong the service lift of paper cutter.
B. The working tables are all chrome-plated and equipped with air balls which makes paper-pushing easily and rusty-proof.Large side workingtable(1000*800) is optional.
C. IR photoelectric protection,buttons by two hands safety devices.
D. Safety device for knife bed, overloading protection for cutting,automatic return safety device.
E. Imported hydraulic components are adopted in hydraulic system,the pressure can be adjusted.The paper is pressed twice by pressure-increased system.
F. Mechanical assistance device for knife replacement makes knife replaced quickly and safely.
G. Equipped with the optical knife alignment to make cutting more convenient.
H. PLC control system.
I. Ejecting device for knife bar.
J. Flat worm speed reducer transmission.
K. Inside electronic knife locker to make the cutting more safety and stable.
L. Multination langueage operation interface.
M. Carry on the block programming operation through the figures and diagrams operation manual.
N. Safety device for overloading cutting.
O. Safety locker of press bar.
Paper Sheet Cutting Machine , a4 Paper Cutting Machine Automatic
